Engine Description:

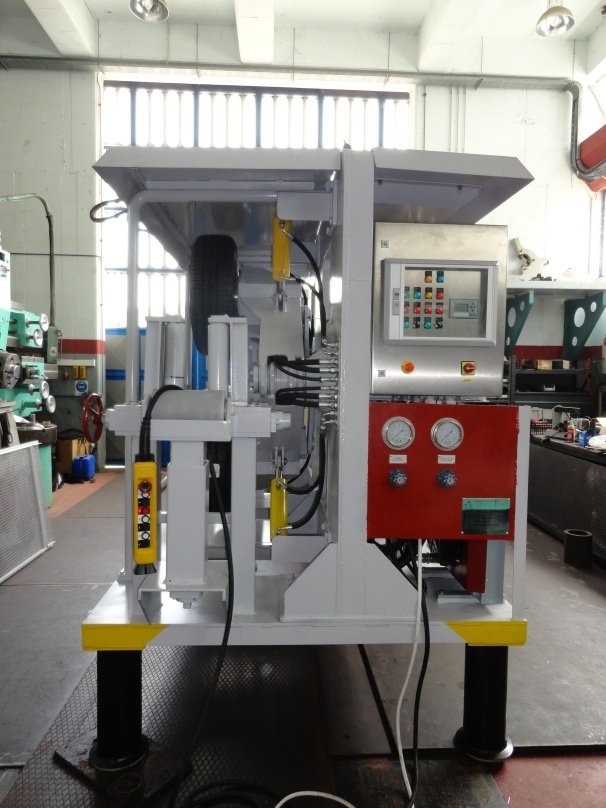

The linear cable engine is of welded steel construction.

Consists mainly of a steel frame, four wheels in pairs on their carrying brackets, adjustable cable guide rollers, electro hydraulic power unit installed on frame, an electric board which includes all necessary automation and a cabled remote control from which wheels operation is achieved, build in encoder mechanism, build in master/slave operation modes.

The main technical characteristics of the linear cable engine are as follows:

PROJECT:                            Linear Cable Engine
TYPE:                                  4W – 1.5T
MAX. TENSION:                   1500 Kgr.
MAX. SPEED:                      0 - 3500 m/h
MAX. VERTICAL FORCE: 1850 Kgr.
INSTALLED POWER:         35Kw
ENGINE WEIGHT:               about 5300 Kgr.
MANUFACTURE DATE:    April 2012
